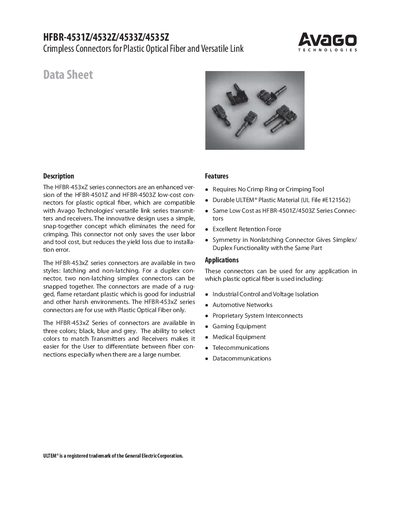

Avago HFBR-453xZ Crimpless Connectors for Plastic Optical Fiber Datasheet

This datasheet details the features, applications, installation instructions, and mechanical specifications of Avago Technologies' HFBR-4531Z through 4535Z…

Brand: Avago Technologies
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 111 KB
Published: 14 October, 2026
Updated: 14 October, 2026
MD5 checksum: 9E476284547D76D7F999758076B3C805
PDF: Avago HFBR-453xZ Crimpless Connectors for Plastic Optical Fiber Datasheet PDF

About this manual

The document describes the HFBR-453xZ series of crimpless connectors designed for use with plastic optical fiber. These connectors are an enhanced version of previous models, utilizing a snap-together concept that eliminates the need for crimping tools or rings to save labor and reduce installation errors. They are constructed from durable ULTEM® plastic suitable for industrial environments and are available in latching and non-latching styles.

What's inside

Description
Features
Applications
Termination Guide
Step-by-Step Instructions
Absolute Maximum Ratings
Connector Mechanical Characteristics
Mechanical Dimensions

Specifications

Material	ULTEM® Plastic
Operating Temperature	-40 to +85 °C
Installation Temperature	0 to +70 °C
Retention Force (Duplex, Non-latching)	14 to 24 N
Tensile Force (HFBR-4531Z)	40 to 50 N

Frequently asked questions

What is the primary advantage of these connectors?

They use a simple snap-together concept which eliminates the need for crimping, saving labor and tool costs.

Which fiber type are these connectors compatible with?

These connectors are designed specifically for use with Plastic Optical Fiber only.

What tools are required to install these connectors?

Installation can be done using standard tools such as wire strippers and cutters.
