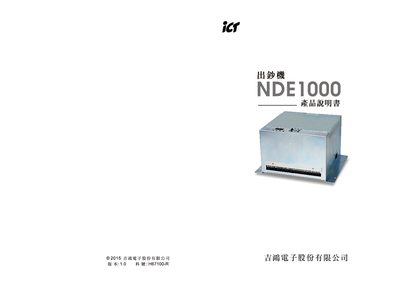

This manual describes the NDE1000 cash dispenser, a compact high‑capacity machine that supports multiple currency types and offers USB‑Pen‑Drive firmware updates. It includes product overview, specifications, installation steps, operating procedures, and service information.
The document also contains detailed wiring diagrams, configuration settings, low‑volume dispensing adjustments, and a fault‑code table to help technicians diagnose and resolve common issues. This manual is written in Chinese.
| Power supply | DC 12~24V |
|---|---|
| Standby current | 0.1 A |
| Working current (12 V) | 1.8 A |
| Maximum consumption current (24 V) | 5 A |
| Operating temperature | 0 °C ~ 55 °C |
| Storage temperature | -30 °C ~ 70 °C |
| Note capacity | 800 ~ 1000 notes |
| Note size (W × L × T) | 62–77 mm × 120–160 mm × 0.08–0.125 mm |
Press and hold the Clear button for three seconds to reset the count.
