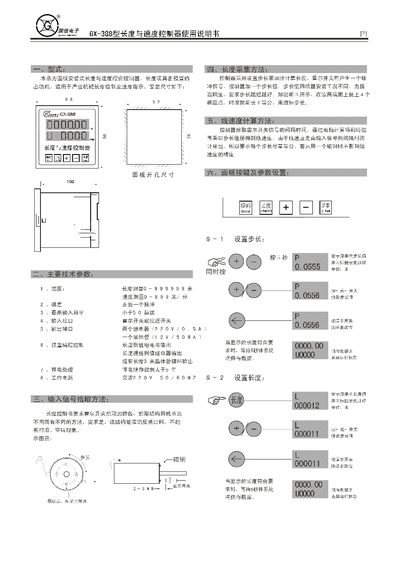

About this manual
The GX-388 controller provides distance measurement up to 999,999 m and speed measurement up to 999 m/min. It includes installation dimensions, input interfaces, power supply specifications and detailed parameter adjustment procedures.
The manual explains how to set measurement ranges, modify step base values, store data, and use the buzzer output. It also lists wiring connections for power and signal inputs. This manual is written in Chinese.
What's inside
- Installation Dimensions
- Measurement Range
- Parameter Settings
- Data Storage
- Buzzer Output
- Power Supply
- Signal Connections
Specifications
| Distance measurement range | 0‑999999 m |
|---|
| Speed measurement range | 0‑999 m/min |
|---|
| Power supply voltage | 220 V AC |
|---|
| Frequency | 50/60 Hz |
|---|
| Input interface voltages | 12 V CP1, 12 V CP2, 0 V CP3 |
|---|
Frequently asked questions
What is the measurement range for distance?
The controller measures distance from 0 to 999,999 meters.
