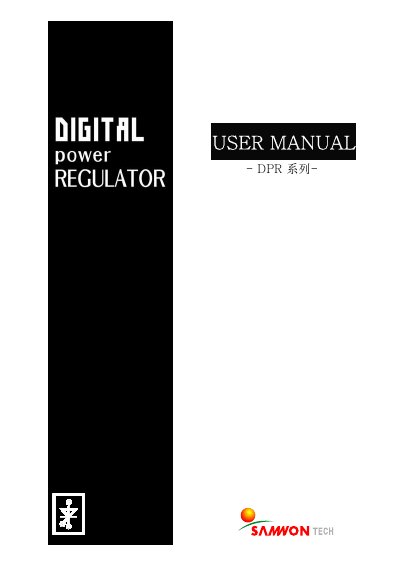

This document is the user manual for the DPR series products. It mainly provides instructions on the installation, use, and repair of the products, as well as information on after-sales service.
This document serves as the user manual for the SAMWONTECH DPR Series Power Regulators, specifically covering the TP2-110 and TZ2-110 models. It provides comprehensive instructions on product specifications, installation procedures, and operational settings. The manual details various control modes, including Phase Angle and Zero Crossing, and explains how to configure the device for different supply voltages and current ratings.
The guide emphasizes safety precautions, such as proper grounding and the use of specified fuses, to prevent accidents and equipment damage. It includes troubleshooting information for alarm conditions like Over Current (OC), Over Temperature (OT), and Unbalance Load (UL), along with instructions for resetting the system and adjusting output parameters via the front panel controls.
| Power Rating | 110A @220V 60Hz |
|---|---|
| Supply Voltage | 220V AC, 380V AC, 440V AC |
| Fuse Type | BUSSMAN 170M1368 |
| Operating Temperature | Internal temperature should not exceed 45°C |
Install a main circuit breaker (NFB) and magnetic circuit breaker (MC) on the outside of the main unit for safety.
Using any fuse other than the specified BUSSMAN 170M1368 will invalidate the warranty.
The device should be installed vertically to ensure proper ventilation and safety.
