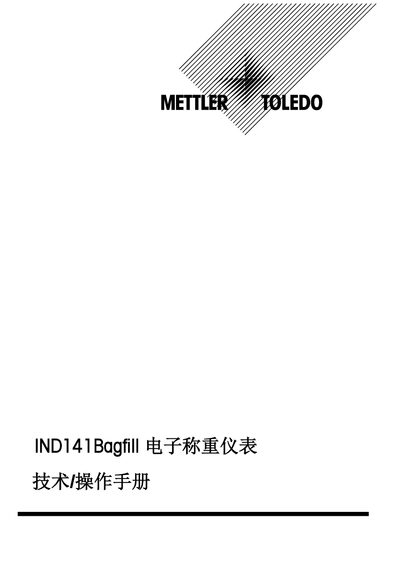

This document is a technical and operational manual for the METTLER TOLEDO IND141Bagfill electronic weighing instrument. It describes the installation and debugging, operation, system parameter settings, flow and timing, error codes and information, and communication of the instrument.
The IND141Bagfill electronic weighing instrument is a rail‑mounted device with a green OLED display, designed for packaging weight control. It offers multiple communication options, configurable I/O, and built‑in comparison and control modes.
The manual covers mechanical installation on a 35 mm DIN rail, electrical wiring for power, sensors and serial ports, step‑by‑step operation procedures, system parameter configuration, and detailed communication protocols such as RS‑232, RS‑485, PROFIBUS DP, PROFINET and EtherNet/IP. This manual is written in Chinese.
| Dimensions (L×W×H) | 98.5 mm × 39 mm × 106 mm |
|---|---|
| Weight | 0.5 kg |
| Protection rating | IP20 |
| Operating temperature | -10 °C to 40 °C |
| Power supply | 12 V DC to 30 V DC, 0.5 A |
| Display type | Green OLED matrix display |
| Minimum resolution | 0.1 µV |
| Communication ports | RS‑232 (300–115200 baud), optional RS‑485, PROFIBUS DP, PROFINET, EtherNet/IP |
It requires a DC supply of 12 V to 30 V with a maximum current of 0.5 A.
Up to four 350 Ω sensors can be connected to the IND141Bagfill controller.
