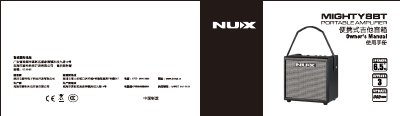

The NUX Mighty8BT is a portable guitar amplifier with built‑in speaker, Bluetooth connectivity, and multiple effects. It offers 8 W of rated output power, a 6.5‑inch speaker, and supports guitar, microphone, and auxiliary inputs.
The manual covers important safety precautions, how to operate the control panel and channel switch, battery installation and runtime, technical specifications, environmental compliance, and warranty and service policies. This manual is written in Chinese.
| Rated Output Power | 8W |
|---|---|
| Speaker Size | 6.5 inch |
| Sample Rate | 44.1 kHz |
| AD/DA Conversion Precision | 24 bit |
| Guitar Input Level | -10 dBu |
| Mic Input Level | -40 dBu |
| Aux Input Level | -10 dBu |
| Headphone Output Power | 250 mW + 250 mW |
| Weight | 2.6 kg |
The Mighty8BT uses 8 AA batteries, and alkaline batteries are recommended.
Do not expose the device to rain or moisture, do not open it yourself, use only the supplied power source, and avoid prolonged high‑volume listening.
Press the channel switch button; a green light indicates the clean channel, yellow indicates overdrive, and red indicates distortion.
