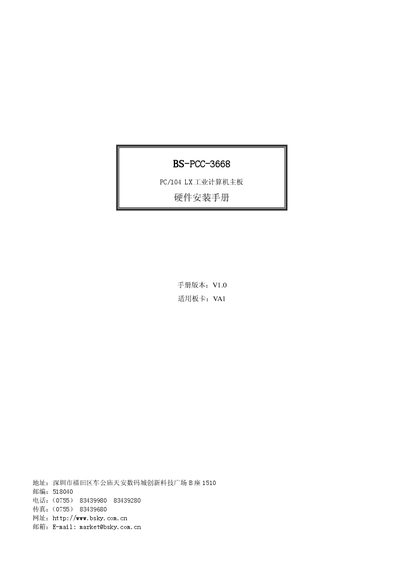

BS-PCC-3668 PC/104 LX industrial computer motherboard hardware installation manual, providing hardware installation instructions for this product.
The PCC-3668 is a compact 96 mm × 115 mm PC/104 LX industrial computer motherboard featuring an AMD Geode LX CPU, DDR SDRAM, multiple I/O interfaces, and optional LVDS display support. It is designed for applications such as equipment monitoring, network terminals, and media playback.
This installation guide covers hardware installation, connector and jumper settings, interface pin definitions, BIOS configuration, driver installation, and troubleshooting. Appendices provide system resource tables, watchdog and GPIO usage examples, and wiring diagrams. This manual is written in Chinese.
| CPU | AMD Geode LX (LX800 BGA) 433/500/600 MHz (default 500 MHz) |
|---|---|
| Memory | 256 MB DDR SDRAM (on‑board) |
| Display Interfaces | CRT, 18‑bit TFT LCD, LVDS |
| Network | 2 × RealTek RTL8139DL 10/100 Mbps Ethernet controllers |
| USB Ports | 4 × standard USB 2.0 |
| Serial Ports | 4 serial ports (2 configurable as RS‑485) |
| Audio | AC’97 2.3 sound card |
| Power Input | +5 V @1.5 A (for 500 MHz CPU, 256 MB memory) |
| Dimensions | 96 mm × 115 mm, 8‑layer PCB |
| Operating Temperature | 0 °C – 60 °C (fan‑less operation) |
The board includes four standard USB 2.0 ports.
It uses an AMD Geode LX (LX800 BGA) processor with selectable frequencies of 433, 500, or 600 MHz (default 500 MHz).
The TFT LCD can display up to 1600 × 1200 at 60 Hz.
