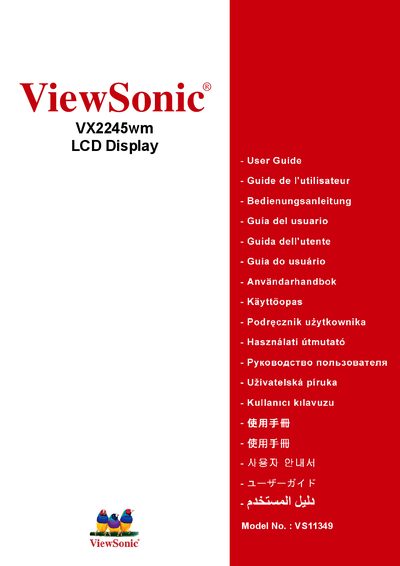

ViewSonic VX2245wm LCD Display User Manual, includes product introduction, installation, use, maintenance and other content.
This manual covers everything needed to set up and use the ViewSonic VX2245wm 22‑inch LCD monitor. It includes safety warnings, a list of package contents, quick installation, ViewDock™ connections, optional wall‑mount instructions, screen‑image adjustment, menu and power‑button lock settings, and detailed technical specifications.
Additional sections describe how to clean the display, diagnose common problems, obtain customer support, and understand the limited three‑year warranty. The guide is written in Chinese and follows FCC, CE, and other regulatory requirements.
| Native resolution | 1680 × 1050 @ 60 Hz |
|---|---|
| Supported input signals | RGB analog (0.7/1.0 Vp‑p, 75 Ω) and TMDS digital (100 Ω) |
| Power supply | 100‑240 VAC, 50‑60 Hz (auto‑switching) |
| Physical dimensions | 524 mm W × 493 mm H × 212 mm D |
| Weight | 13.7 lb (6.2 kg) |
| Operating temperature | 5 °C to 35 °C (41 °F to 95 °F) |
| Humidity range | 20 % to 80 % (non‑condensing) |
Check that the power button or switch is turned on, ensure the AC power cord is securely connected to the monitor and to a working outlet, and verify the outlet supplies voltage by plugging in another device.
