The HS02-P series current sensor is designed using the Hall effect and magnetic compensation principle. It has the characteristics of wide measurement range, high accuracy, fast response speed, good linearity, and strong anti-interference ability. It is widely used in the detection of DC, AC and pulsating currents.
The HS02-P series current sensor from BingZi uses Hall‑effect and magnetic compensation to provide high isolation between the measured and test circuits. It is compact, vertically‑mounted, and suitable for measuring DC, AC and pulsed currents with a fully enclosed, robust design.

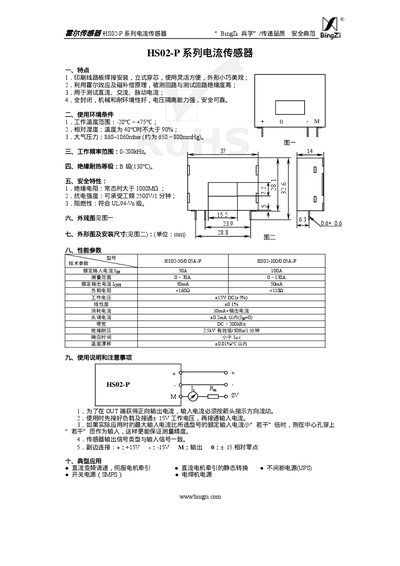

The manual describes the recommended installation, wiring, safety limits, performance parameters such as rated input current, measurement range, output current, bandwidth and response time, and lists typical applications including variable‑frequency drives, servo motor traction, UPS and SMPS systems. This manual is written in Chinese.
| Rated Input Current | 50 A (HS02‑50/0.05A‑P) / 100 A (HS02‑100/0.05A‑P) |
|---|---|
| Measurement Range | 0‑70 A (HS02‑50) / 0‑150 A (HS02‑100) |
| Rated Output Current | 50 mA |
| Load Resistance | <160 Ω (HS02‑50) / <110 Ω (HS02‑100) |
| Working Voltage | ±15 V DC (±5 %) |
| Power Consumption | 10 mA+ |
| Offset Current | ±0.2 mA (IIN=0) |
| Bandwidth | DC‑200 kHz |
| Insulation Voltage | 2.5 kV |
| Response Time | <1 µs |
| Temperature Drift | ±0.01 %/°C |
| Insulation Resistance | >1000 MΩ |
| Withstand Voltage | 2500 V for 1 min |
The sensor works from –20 °C to +75 °C.
It is rated for an insulation voltage of 2.5 kV.
The input current must flow in the direction indicated by the arrow to get a positive output.
