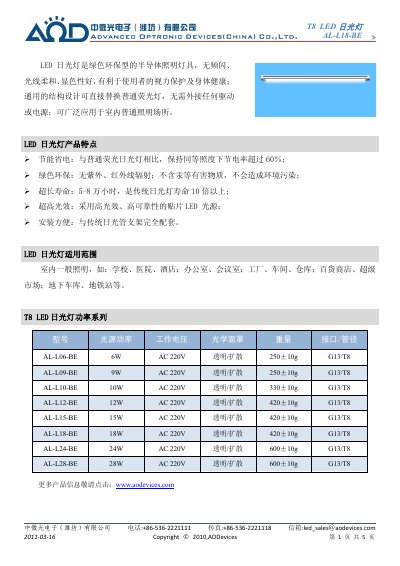

This document is about the introduction of the T8 LED daylight lamp product AL-L18-BE from MicroLight Electronics (Weifang) Co., Ltd. This product is a green and environmentally friendly semiconductor lighting fixture with no flicker, soft light, and good color rendering. Compared with ordinary fluorescent daylight lamps, this product has an energy saving rate of over 60%, no ultraviolet and infrared radiation, and does not contain harmful substances. Its lifespan is more than 10 times that of traditional daylight lamps. This product is suitable for indoor general lighting places such as schools, hospitals, hotels, and offices.
The AL-L18-BE T8 LED daylight lamp is a green, mercury‑free lighting solution with high luminous efficacy and a long service life. It can replace conventional fluorescent tubes without additional drivers and is suitable for indoor lighting such as schools, hospitals, offices, factories, and underground spaces.
The manual provides technical parameters, light distribution data, wiring instructions, installation steps, packaging details, and after‑sales service information to help users install and maintain the lamp safely and efficiently. This manual is written in Chinese.
| Operating Voltage | 185‑265 VAC |
|---|---|
| LED Power | 18 W (typical) |
| Power Factor | 0.88 |
| Luminous Flux (transparent) | 1905 lm |
| Color Temperature | 6300 ± 200 K |
| Lifespan | 50 000 hours |
| Weight | 420 g |
| Dimensions | L 1198 mm × D 26.2 mm |
Remove the starter and ballast from the existing fluorescent fixture, short‑circuit the ballast, then mount the LED tube into the fixture and turn on the switch.
The lamp must be operated within 185 V to 265 VAC.
AOD does not cover damage caused by improper installation, misuse, operation outside specified conditions, accidents, or unauthorized disassembly.
