The CUBE-60 is a portable, full‑range, two‑way speaker system with a powerful, balanced sound. It offers two keyboard inputs, built‑in reverb, and a range of tone controls for flexible performance.

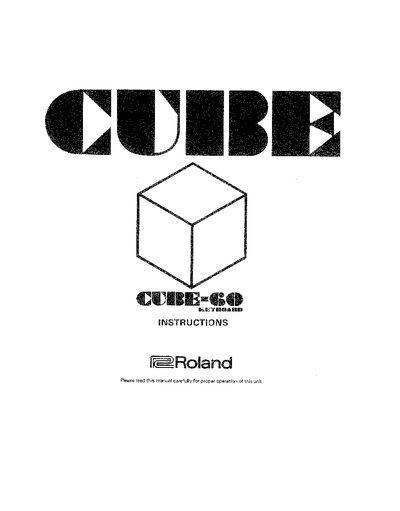

The manual covers features, control panel functions, input and output jack usage, power and volume settings, safety cautions, technical specifications, and a troubleshooting guide for common issues.
| Output Power | 60 watt (rms) |
|---|---|
| Speakers | 30 cm × 1, Horn Tweeter × 1 |
| Input Jacks | 2 (2 ch) |
| Controls | VOLUME 1, 2, TREBLE, MIDDLE, BASS, REVERB |
| Power Consumption | 45 W |
| Physical Dimensions | 370 mm (W) × 465 mm (H) × 300 mm (D) |
| Weight | 16.5 kg |
| Accessories | Vinyl dust cover |
Set all volume controls to "0" before turning on the power switch.
The volume may be set to the lowest position; raise the volume to hear sound.
The unit provides two input jacks for connecting keyboard instruments.
