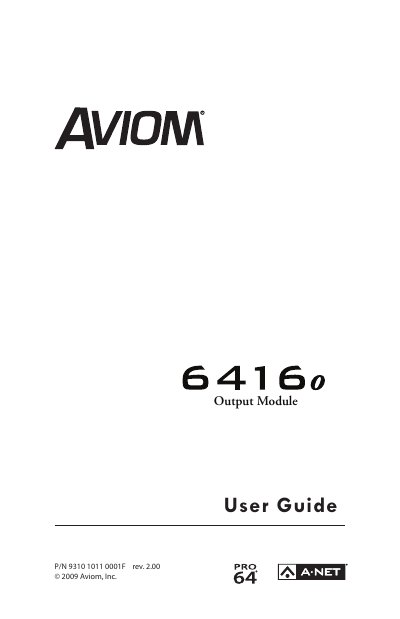

AVIOM 6416o user manual

This document describes the features and characteristics of Aviom's output module product.

Brand: Aviom
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 96
File format: PDF
File size: 7.2 MB
Published: 09 August, 2012
Updated: 29 September, 2023
MD5 checksum: 76BB63093209056050752E4C0026EBED
PDF: AVIOM 6416o user manual PDF

About this manual

This document is the User Guide for the Aviom 64160 Output Module. It provides instructions for installation, including rack mounting and ventilation requirements, as well as safety precautions regarding power and environmental conditions. The guide details the module's front and rear panel components, including the EtherCon connector and various LEDs and switches.

What's inside

Important Safety Instructions
AC Power
Rack Mounting
Front Panel Components
A-Net Slot Configuration
Network Modes
Firmware Update
Warranty Information

Specifications

Operating Temperature	10°C to 50°C (50°F to 122°F)

Frequently asked questions

Does the Aviom 64160 have an on/off power switch?

No, there are no on/off power switches included in the system; the external power supply should be used to control power.

What is the warranty period for the Aviom 64160?

Aviom, Inc. warrants the product against defects in materials and workmanship for a period of one year from the date of the original retail purchase.
