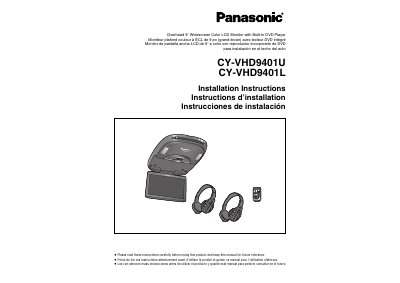

Panasonic CY-VHD9401U Overhead Monitor Installation Instructions

This document introduces the Panasonic Overhead 9q Widescreen Color LCD Monitor with Built-in DVD Player, providing installation instructions and safety information.

Brand: Panasonic
Category: Player
Document type: Installation Guide
Language: English
Pages: 41
File format: PDF
File size: 2.9 MB
Published: 09 August, 2012
Updated: 29 September, 2023
MD5 checksum: 69EFB68F6F3FEB5200150F0BB5A49191
PDF: Panasonic CY-VHD9401U Overhead Monitor Installation Instructions PDF

About this manual

This document provides installation instructions for the Panasonic CY-VHD9401U and CY-VHD9401L, which are 9-inch widescreen color LCD monitors with built-in DVD players designed for ceiling installation in vehicles. The guide covers safety information, required tools, hardware identification, wiring diagrams, and step-by-step installation procedures.

What's inside

Safety Information
Before Installation
Supplied Hardware
Required Tools
Identify All Leads
Connect All Leads
Final Installation
Display Unit Lateral Angle Adjustment

Specifications

Screen Size	9 inches
Product Type	LCD Monitor with Built-in DVD Player
Voltage Requirement	DC 12 V grounded vehicles

Frequently asked questions

Can I install this myself?

No, you should have a professional technician wire and install the product to ensure safety.

What voltage is required for this monitor?

This product is designed to be used only in DC 12 V grounded vehicles.

Which bulb rating should be used when replacing the dome light?

You must use a bulb with specified ratings of 12 V/5 W.

What is the screen size of this monitor?

It is an overhead 9" widescreen color LCD monitor.
