This is a user manual that introduces the features and usage methods of CQ-4330U

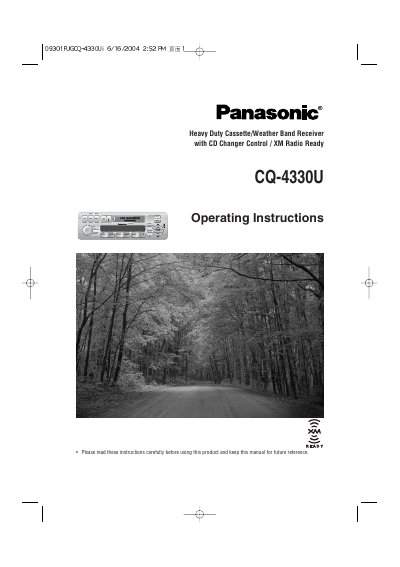

This document provides operating instructions for the Panasonic CQ-4330U Heavy Duty Cassette/Weather Band Receiver. The manual covers safety information, power and sound controls, clock and alarm settings, and operation of the radio, cassette tape player, CD changer control, and XM satellite radio functions.
The guide also includes installation instructions, electrical connection diagrams, troubleshooting tips, maintenance procedures, and a list of technical specifications for the unit.
| Power Supply | 12 V DC (11 V-16 V) test Voltage 14.4 V, Negative ground |
|---|---|
| Maximum Power Output | 37 W x 4 channels at 400 Hz, Volume Control maximum |
| Power Output | 18 W per channel into 4 ohms, 40 to 30 000 Hz at 3 % THD |
| Dimensions | 7 x 1-15/16" x 6-1/10' (178 x 50 x 160 mm) |
| Weight | 3 Ibs. 12 oz (1.7kg) |
| FM Stereo Frequency Range | 87.9-107.9 MHz |
| Weather Band Frequency Range | 162.40-162.55 MHz |
| Tape Player System | 4-track, 2-program stereo |
The preset memory is cleared and returns to the original factory setting when the power connector or battery is disconnected.
The alarm will turn off automatically after 90 seconds if not manually turned off by pressing [ALM].
