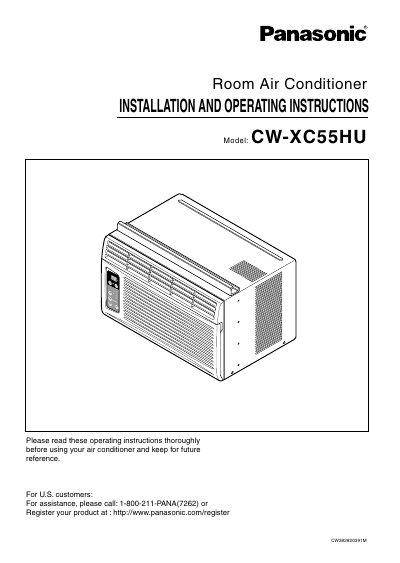

This document provides installation and operating instructions for the CW-XC55HU room air conditioner, including features and installation methods.
This manual provides installation and operating instructions for the Panasonic CW-XC55HU room air conditioner. It covers safety precautions, electrical data, and detailed instructions for using the unit and its remote controller. The document includes guidance on setting the temperature, selecting operating modes (Cool, Economy, Fan, Dry), and using timers. It also details how to clean the air filter and the unit itself to maintain peak efficiency.
| Cooling Capacity | 5,200 Btuh |
|---|---|
| Voltage | 115 V |
| Frequency | 60 Hz |
| Current | 4.4 Amps |
| Input Power | 480 W |
| EER | 10.8 |
| Moisture Removal | 1.4 Pints |
| Room Circulation | 140 Cfm |
| Height | 31.2 cm (12 9/32 inches) |
| Width | 47.2 cm (18 9/16 inches) |
| Depth | 38.0 cm (14 15/16 inches) |
| Net Weight | 22 kg (48 lbs) |
| Gross Weight | 23 kg (52 lbs) |
The temperature can be set within a range of 60°F (16°C) to 86°F (30°C) by 1°F (1°C).
The air filter should be washed at least every 2 weeks to prevent reduced air flow and cooling capacity.
In dry mode, the fan rotates at low speed and stops when the compressor stops cooling, checking the room temperature approximately every 3 minutes.
