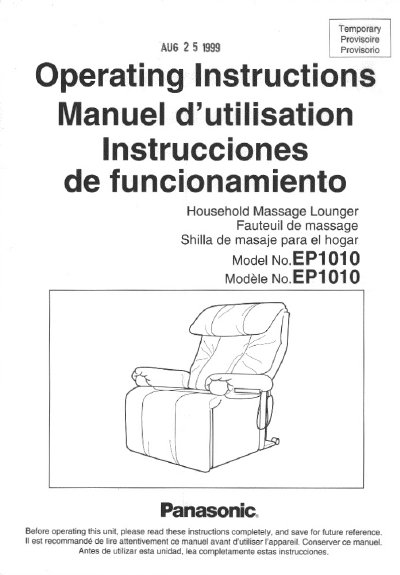

This document provides operating instructions for the Panasonic EP1010 Household Massage Lounger. It includes important safety warnings, parts identification, and specifications for the device. The manual guides users through turning on the power, using the manual and programmed massage functions, and adjusting the reclining features.
| Power source | 120 V AC, 60 Hz |
|---|---|
| Kneading speed | Approx. 28 times/min. |
| Tapping speed | Approx. 500 times/min. (per side) |
| Rolling massage speed | Approx. 1 cycle every 37 sec. |
| Massage width | Shoulder/fower back section : Approx. 2 15/16 in. (75 mm) |
| Massage heads up/down travel | Automatic repetition within approx. 4 12/16 in. (120 mm) range |
| Intensity adjustment | 7 steps |
| Automatic shut-off | Approx. 15 min. |
| Leg massager - vibration | Approx. 3200 cycles/min. |
| Shut-off timer | Approx. 30 min. |
| Maximum user weight | 264 Ibs (120 kg) |
The maximum user weight is 264 lbs (120 kg).
The automatic shut-off timer runs for approximately 30 minutes.
No, the appliance should not be used outdoors.
Immediately turn off the power and have it checked by an authorized servicenter.
