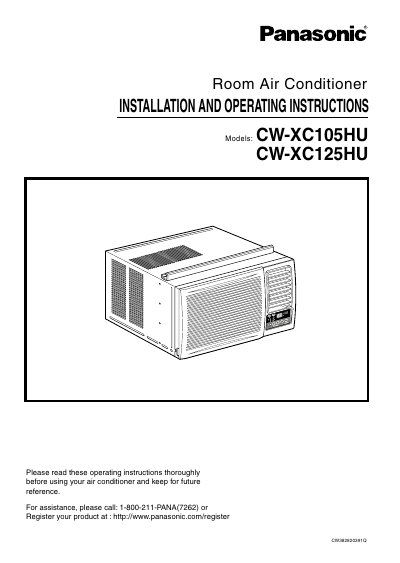

Panasonic CW-XC105HU/CW-XC125HU Room Air Conditioner Installation and Operating Instructions

This document is about the installation and operating instructions for the CW-XC105HU CW-XC125HU room air conditioner models. It describes the features and installation of the air conditioner, and provides suggestions for maintenance and troubleshooting.

Brand: Panasonic
Category: Air conditioner
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 3.2 MB
Published: 09 August, 2012
Updated: 29 September, 2023
MD5 checksum: 6874E914F848396A6DC47A08968C5761
PDF: Panasonic CW-XC105HU/CW-XC125HU Room Air Conditioner Installation and Operating Instructions PDF

About this manual

This manual provides installation and operating instructions for the Panasonic CW-XC105HU and CW-XC125HU room air conditioners. It covers essential safety precautions, control panel functions, remote controller usage, and ventilation settings to ensure proper operation.

What's inside

Safety Precautions
About the Controls on the Air Conditioner
Remote Controller
Ventilation and Air Direction
How to Secure Drain Pipe
Care and Maintenance
Normal Operation
Abnormal Operation

Specifications

Cooling Capacity (CW-XC105HU)	9,800 Btu/h
Voltage	115 V
Frequency	60 Hz
Current (CW-XC105HU)	8.4 Amps
Height	38.0 cm (14.5 inches)
Width	60.0 cm (23.5 inches)
Net Weight (CW-XC105HU)	43 kg (95 lb)

Frequently asked questions

What is the temperature range for this air conditioner?

The temperature can be set within a range of 60°F to 86°F.

How often should the air filter be cleaned?

The air filter should be checked and cleaned at least once every 2 weeks.
