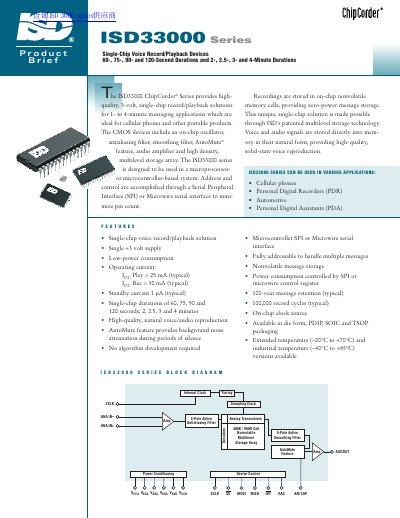

This document introduces the ISD33000 series single-chip voice record/playback devices, which can provide 60, 75, 90 and 120 seconds and 2, 2.5, 3 and 4 minutes of recording time. The recording data is stored in on-chip non-volatile memory cells, providing zero power message storage. This unique, single-chip solution is made possible through ISD's patented multilevel storage technology. Voice and audio signals are stored directly into mem- ory in their natural form, providing high-quality, solid-state voice reproduction.
The ISD33000 ChipCorder Series provides high-quality, 3-volt, single-chip record/playback solutions ideal for cellular phones and other portable products. These CMOS devices include an on-chip oscillator, antialiasing filter, smoothing filter, AutoMute feature, audio amplifier, and high-density multilevel storage array.
| Supply Voltage | 3 volts |
|---|---|
| Operating Current (Play) | 25 mA (typical) |
| Operating Current (Record) | 30 mA (typical) |
| Standby Current | 1 µA (typical) |
| Message Retention | 100-year (typical) |
| Record Cycles | 100,000 (typical) |
| Available Durations | 60, 75, 90, 120 seconds; 2, 2.5, 3, 4 minutes |
The devices operate on a single +3 volt supply.
The series is available in die form, PDIP, SOIC, and TSOP packaging.
The typical standby current is 1 µA.
