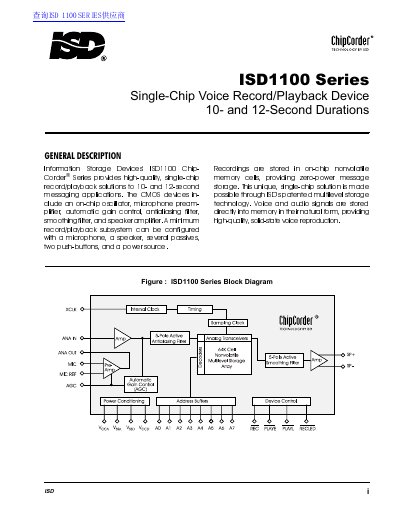

The ISD1100 Series is a single-chip voice record/playback device that supports 10- and 12-second durations, and features a low power mode and programmable frequency.
The ISD ISD1100 Series provides high-quality, single-chip record/playback solutions for 10- and 12-second messaging applications. These CMOS devices include an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, and speaker amplifier. Recordings are stored in on-chip nonvolatile memory cells, providing zero-power message storage with a typical retention of 100 years.
| Minimum Duration | 10 and 12 seconds |
|---|---|
| Record Cycles | 100,000 (typical) |
| Message Retention | 100 years (typical) |
| Standby Current | 0.5 uA (typical) |
| Power Supply | Single +5 volt |
The ISD1100 series offers single-chip solutions for 10 and 12 seconds.
No, the device does not require a programmer or development system.
The device automatically returns to a low-power standby mode consuming typically 0.5 uA at the end of a playback or record cycle.
