This document provides information about the 766 series pulse transformers. The series includes transformers with different parameters and characteristics, suitable for various applications.

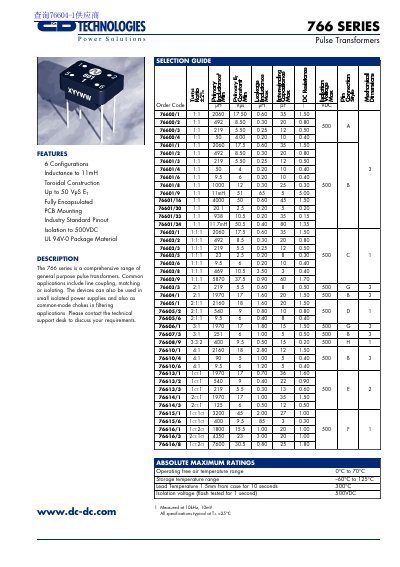

This document is a selection guide for the C&D Technologies 766 Series of general-purpose pulse transformers. The devices feature toroidal construction, are fully encapsulated, and are designed for PCB mounting. They are suitable for applications such as line coupling, matching, isolation, small isolated power supplies, and common-mode chokes.
| Storage temperature range | -60°C to 125°C |
|---|---|
| Lead Temperature | 300°C for 10 seconds |
| Isolation voltage | 500VDC |
| Package Material | UL 94V-0 |
| Pin pitch | 2.54mm |
The devices operate in a free air temperature range of 0°C to 70°C.
They provide an isolation voltage of 500VDC, which is flash tested for one second.
