766 series pulse transformers are available in 1:1, 1:1:1, 2:1, 2:1:1, 3:1, 3:3:2, 4:1, 1CT:1, 2CT:1, 1CT:1CT ratios for use in switch mode power supplies, inverters, motor drives, and communication equipment.

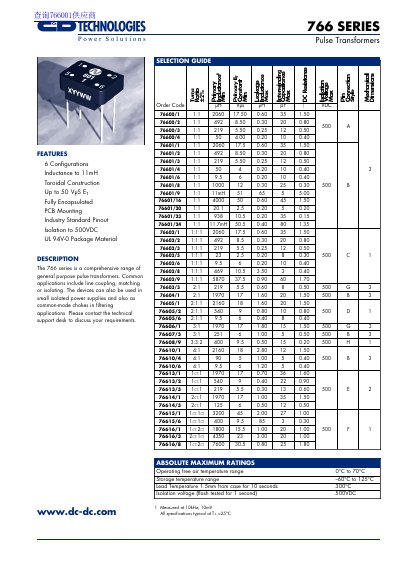

This document is a selection guide for the C&D Technologies 766 Series of general-purpose pulse transformers. The series features toroidal construction and is fully encapsulated with UL 94V-0 package material. Common applications include line coupling, matching or isolating, use in small isolated power supplies, and acting as common-mode chokes in filtering applications.
| Storage temperature range | -60°C to 125°C |
|---|---|
| Lead Temperature | 300°C |
| Isolation voltage | 500VDC |
| Inductance to 1 TmH resolution | 0.20 |
| Package Material | UL 94V-0 |
The isolation voltage is 500VDC, flash tested for 1 second.
The lead temperature is 300°C at 1.5mm from the case for 10 seconds.
