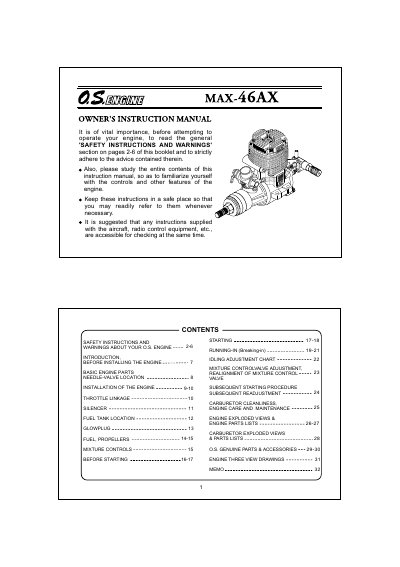

OS Engines MAX-46AX Owner's Instruction Manual

About this manual

This document is the owner's instruction manual for the OS Engines MAX-46AX internal combustion engine. It emphasizes strict adherence to safety instructions regarding propeller hazards, fuel flammability, and carbon monoxide exhaust before attempting to operate the device.

The guide provides detailed procedures for installing the glow plug, connecting fuel tubing, and mounting the engine in a model aircraft using appropriate beam mounts. It also includes sections on adjusting the needle valve, throttle linkage, and performing subsequent starting procedures.

What's inside

• Safety Instructions
• Warnings
• Notes
• Introduction
• Before Installing the Engine
• Installation of the Engine
• Needle-Valve Location
• Engine Parts Lists

Frequently asked questions

What is the maximum tip speed of the propeller for this engine?

The propeller tip speeds with powerful engines may exceed 600 feet per second.

What is the minimum safe distance for onlookers when preparing the model for flight?

Keep all onlookers well back at least 20 feet or 6 meters when preparing your model for flight.

What are the dimensions for the replacement silicone tubing if the fuel tubing is damaged?

Replace the damaged tubing with a 54-56mm length of 5mm ODx2mm ID silicone tubing.
