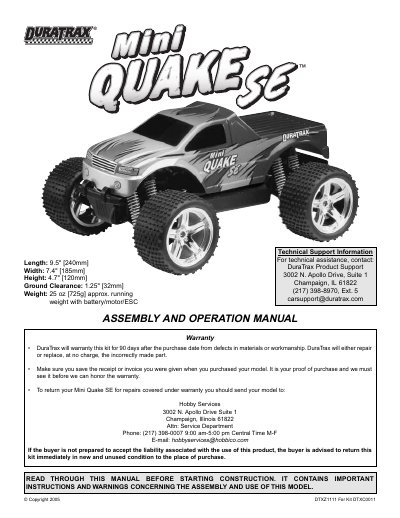

DuraTrax Mini Quake SE Assembly and Operation Manual

This document is the assembly and operation manual for DuraTrax Mini Quake SE

Brand: Duratrax
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 2.4 MB
Published: 08 August, 2012
Updated: 30 September, 2023
MD5 checksum: C1E2005A870C9D65A073E6EA5DD89DE2
PDF: DuraTrax Mini Quake SE Assembly and Operation Manual PDF

About this manual

This manual provides instructions for building, operating, and maintaining the DuraTrax Mini Quake SE electric R/C vehicle. It includes important safety precautions, a list of included components, and detailed assembly steps for the motor, servo, receiver, and speed control.

What's inside

Warranty
Important Safety Precautions
Stress-Tech Parts Guarantee
Helpful Hints
Repair Service
Parts List
Motor Installation
Servo Installation
Receiver Installation
Speed Control Installation

Specifications

Length	9.5" [240mm]
Width	7.4" [185mm]
Height	4.7" [120mm]
Ground Clearance	1.25" [32mm]
Weight	25 oz [725g] approx.

Frequently asked questions

What is the warranty period for this kit?

DuraTrax will warranty this kit for 90 days after the purchase date from defects in materials or workmanship.

What is the replacement policy for Stress-Tech parts?

DuraTrax will replace any Stress-Tech plastic part you break during the first 12 months you own the vehicle.

What battery is included with the Mini Quake SE?

The kit includes a 6-Cell Mini Quake Battery (DTXC2196).
