This file is TS805C04 supplier information

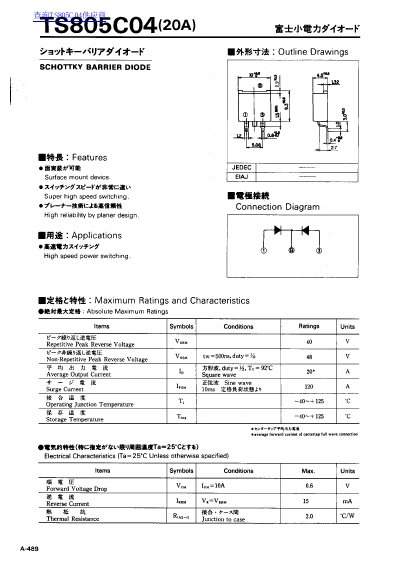

This document is a technical datasheet for the Collmer Semiconductor TS805C04 (20A) Schottky Barrier Diode. It highlights key features such as its surface-mount device form factor and super high speed switching performance, designed for high speed power switching applications.
The datasheet provides detailed electrical specifications including absolute maximum ratings like a repetitive peak reverse voltage of 40V and an average output current of 20A. It also includes characteristic curves for forward and reverse behavior, thermal resistance data (Junction to case: 20°C/W), and surge capability information.
| Non-Repetitive Peak Reverse Voltage (VRSM) | 500 V |
|---|---|
| Operating Junction Temperature Range | -40 to +125 C |
| Forward Voltage Drop (IF=10A) | 0.6 V |
| Reverse Current (VR=40V, Ta=25C) | 15 mA |
| Thermal Resistance (Junction to case) | 20 CW |
The device supports an average output current of 20 A under square wave conditions with a duty cycle of 1/3 and a case temperature of 92 C.
The diode can handle a surge current of 120 A when applied as a sine wave for 10 ms.
