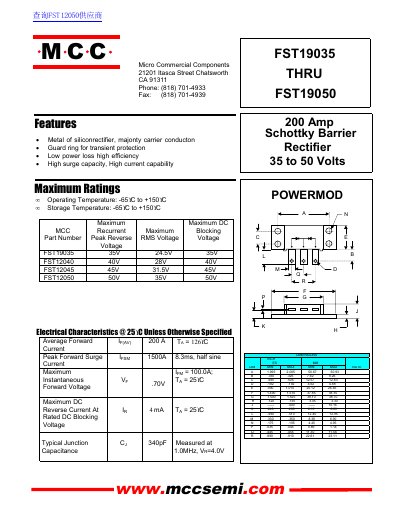

FST19035 THRU FST19050 200 Amp Rectifier 35 to 50 Volts is a Schottky rectifier produced by MCC company. It has the characteristics of majority carrier conduction of metal silicon rectifier, transient protection guard ring, low power loss high efficiency, high surge capacity, high current capability.
This document provides specifications and characteristics for the FST19035 through FST19050 series of 200 Amp Schottky Barrier Rectifiers. Key features include a majority carrier conduction structure, a guard ring for transient protection, and high surge capacity. The devices are designed for low power loss and high efficiency.
| Average Forward Current | 200 A |
|---|---|
| Peak Forward Surge Current | 1500A 8.3ms |
| Operating Temperature | -65°C to +150°C |
| Storage Temperature | -65°C to +150°C |
| Maximum DC Reverse Current | 4 mA |
| Typical Junction Capacitance | 340pF |
The maximum DC blocking voltage for the FST19035 is 35 V.
The typical junction capacitance is 340pF measured at 1.0MHz and V R=4.0V.
The peak forward surge current is 1500A for 8.3ms.
