This document mainly introduces the features and characteristics of FST12020-120100 120A rectifier, including operating temperature, maximum recurrent peak reverse voltage, maximum RMS voltage, maximum DC blocking voltage, average forward current, peak forward surge current, maximum instantaneous forward voltage, maximum DC reverse current, and typical junction capacitance.

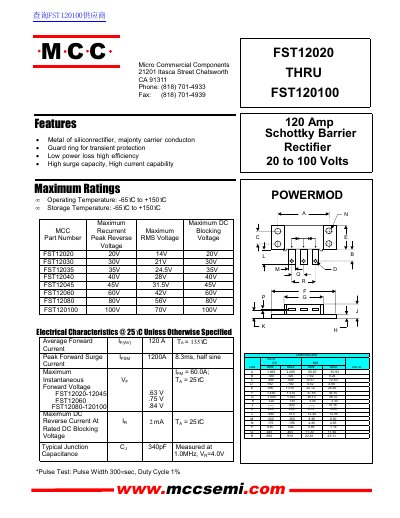

This document provides technical specifications for the MCC FST12020 through FST120100 series of 120 Amp Rectifiers. The devices are designed with a metal silicon rectifier structure featuring a guard ring for transient protection, offering high surge capacity and efficiency.
| Average Forward Current (IF(AV)) | 120 A |
|---|---|
| Peak Forward Surge Current (IFSM) | 1200A |
| Operating Temperature Range | -65°C to +150°C |
| Storage Temperature Range | -65°C to +150°C |
The maximum DC blocking voltage for the FST120100 model is 100V.
The typical junction capacitance is 340pF when measured at 1.0MHz and VR=4.0V.
