This document describes the features and characteristics of Jetless Rotary Cleaning Technology, including the functions and usage of Rotary DriMaster and Rotary Extractor.

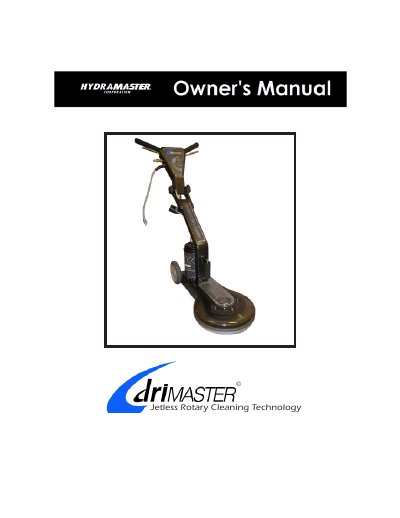

This manual provides instructions for the HydraMaster Rotary DriMaster, a rotary carpet cleaning machine utilizing Jetless Rotary Cleaning Technology. It details the machine's introduction, safety precautions, and system operation, including handle adjustment and hookups for solution and vacuum.
| Length | 34" |
|---|---|
| Base Width | 13" |
| Height | 30" |
| Weight | 48 lbs |
| Motor Voltage | 115 V |
| Motor Power | 1/2 HP |
| Motor RPM Input | 1725 RPM |
| Motor RPM Output | 120 RPM |
| Drive System | Belt Drive |
Only Lithium base grease should be used; using Moly base, Clay base, or spray lubricants may damage the bearing system.
The belts should be checked every 300 hours or every 6 months for proper tension and excessive wear.
Stalube Lithium General Purpose Grease (P/N SL3310) is recommended and available at most auto parts stores.
