This is a DriMaster Upholstery Tool user manual, which introduces how to assemble the tool, adjust the water volume, adjust the vacuum relief, as well as maintenance methods, including cleaning the hose and manifold, cleaning the solution injector bar, and cleaning the inline filter

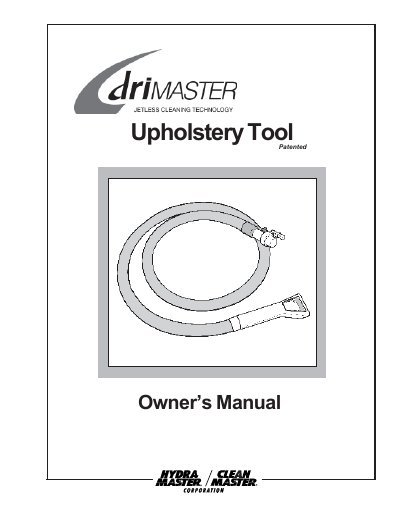

This manual provides instructions for the HydraMaster D-163-010 Upholstery Tool, including assembly steps such as connecting the solution hose and vacuum cuff. It details how to adjust water volume using the needle valve and how to manage vacuum relief for optimal cleaning performance.
| Model Number | D-163-010 |
|---|---|
| Copyright Year | 1999 |
Hold the vacuum hose manifold with your left hand and twist the hose to expose the Vacuum Relief holes.
A .006" feeler gauge is required to clear debris from the slot.
