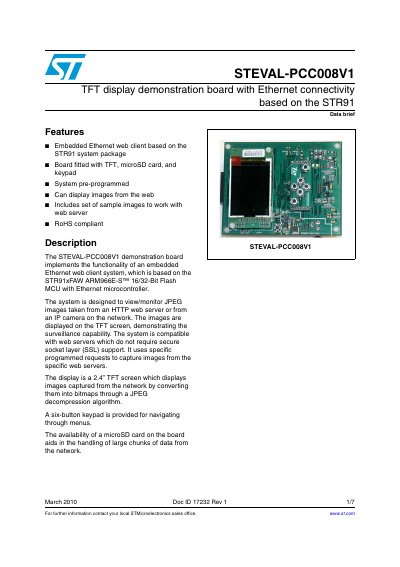

ST STEVAL-PCC008V1 TFT display demonstration board with Ethernet connectivity based on the STR91 handbook

This document is about STEVAL-PCC008V1, which is an embedded Ethernet web client system based on the STR91 system software package with TFT, microSD card and keypad. The system is pre-programmed and can display images from the web. It includes a set of sample images to work with web server and complies with RoHS standard

Brand: STMicroelectronics
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 7
File format: PDF
File size: 203 KB
Published: 07 August, 2012
Updated: 30 September, 2023
Model: STR9
MD5 checksum: FAD2B8770FBDBE0A1298129E3540D184
PDF: ST STEVAL-PCC008V1 TFT display demonstration board with Ethernet connectivity based on the STR91 handbook PDF

About this manual

The STEVAL-PCC008V1 is a demonstration board that implements an embedded Ethernet web client system based on the STR91xFAW ARM966E-S 16/32-Bit Flash MCU. The system is designed to view and monitor JPEG images from an HTTP web server or an IP camera on the network, displaying them on a 2.4-inch TFT screen to demonstrate surveillance capabilities.

What's inside

Features
Description
Schematic diagrams
Microcontroller circuit
Ethernet circuit
Connector circuit
Power management circuit
Revision history
Legal information

Specifications

Microcontroller	STR91xFAW ARM966E-S 16/32-Bit Flash MCU
Input	Six-button keypad
Storage	microSD card
Compliance	RoHS compliant

Frequently asked questions

What is the primary function of the STEVAL-PCC008V1 board?

The system is designed to view and monitor JPEG images taken from an HTTP web server or from an IP camera on the network.

What is the size of the display screen on the board?

The display is a 2.4-inch TFT screen.

What input method is provided for navigating menus?

A six-button keypad is provided for navigating through menus.
