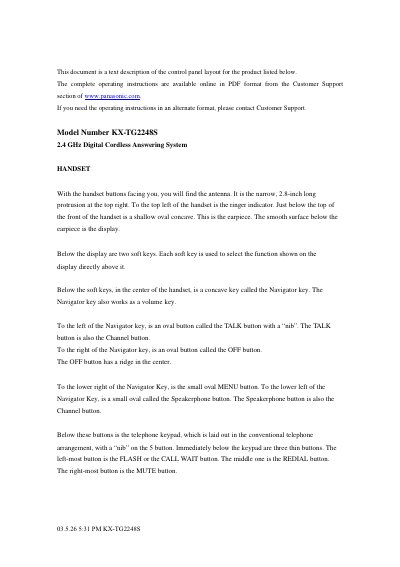

This document is a text description of the control panel layout for the KX-TG2248S model. The product is a 2.4 GHz digital cordless answering system with various features and buttons.
This document provides a text description of the control panel layout for the Panasonic KX-TG2248S 2.4 GHz Digital Cordless Answering System. It details the physical location and function of buttons on both the handset and the base unit.
The guide describes the handset components, including the antenna, earpiece, display, soft keys, Navigator key, TALK button, OFF button, MENU button, Speakerphone button, telephone keypad, and various feature buttons like FLASH, REDIAL, and MUTE. It also covers the headset jack and belt clip indentations.
The complete operating instructions are available online in PDF format from the Customer Support section of www.panasonic.com.
The Navigator key is a concave key located in the center of the handset and also works as a volume key.
The TALK button is an oval button to the left of the Navigator key and also serves as the Channel button.
The two metal ridges at the bottom of the handset and on the bottom in the cradle of the base unit serve as the charge contacts.
