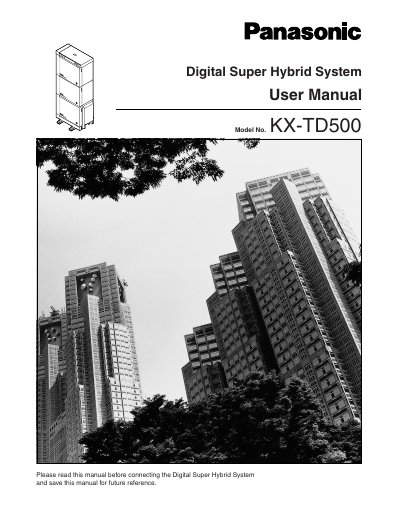

Panasonic KX-TD500 Digital Super Hybrid System User Manual

This is a user manual that introduces the functions and usage methods of Panasonic KX-TD500 Digital Super Hybrid System.

Brand: Panasonic
Category: Other network devices
Document type: User Manual
Language: English
Pages: 554
File format: PDF
File size: 4.4 MB
Published: 07 August, 2012
Updated: 30 September, 2023
MD5 checksum: E639B70157FD34506CEC181BE2E847A1
PDF: Panasonic KX-TD500 Digital Super Hybrid System User Manual PDF

About this manual

This manual is designed for users of the Panasonic KX-TD500 Digital Super Hybrid System. It focuses on the operation of Digital Proprietary Telephones (DPTs), Digital DSS Consoles, and Single Line Telephones (SLTs) after the system is installed and programmed. The guide provides step-by-step procedures to activate various features and includes background information on system components and capabilities.

What's inside

System Components
DPT Overview
Station Programming
User Programming
Station Features and Operation
DSS Console Features
Appendix
Troubleshooting

Specifications

System Type	Digital Super Hybrid System
Compatible DPT Models	KX-T7220, KX-T7230, KX-T7235, KX-T7250, KX-T7420, KX-T7425, KX-T7431, KX-T7433, KX-T7436
Compatible DSS Console Models	KX-T7240, KX-T7440, KX-T7441

Frequently asked questions

What happens to conversations during a power failure?

Specific extensions are automatically connected straight to specific CO lines, but all other conversations are disconnected.

Can Digital Proprietary Telephones be used during a power failure?

No, Digital Proprietary Telephones cannot be used during a power failure, but Single Line Telephones can work.
