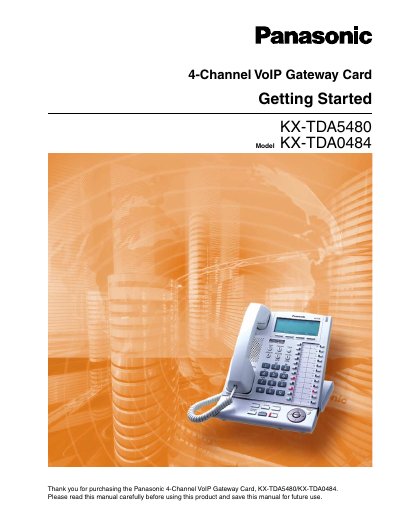

Panasonic KX-TDA5480/KX-TDA0484 4-Channel VoIP Gateway Card Getting Started Guide

About this manual

The Panasonic KX-TDA5480 and KX-TDA0484 are 4-Channel VoIP Gateway Cards designed to be integrated into existing IP networks. They bridge the Public Switched Telephone Network (PSTN) and analog telephones with digital data networks, allowing organizations to route voice and fax communications over IP without interrupting pre-existing data communications.

What's inside

• Overview
• Installing in the KX-TDA50 PBX
• Installing in the KX-TDA100/KX-TDA200 PBX
• Programming the VoIP Gateway Card
• Programming the PBX
• Guidance for VoIP Installation
• Alternative Numbering Plan Example
• Initialization of the VoIP Gateway Card

Specifications

Frequently asked questions

How does the card handle incoming communications?

On the incoming side, the card reverses the process and translates IP packets back into appropriate voice or fax signals.

What is the purpose of the Panasonic 4-Channel VoIP Gateway Card?

The card allows organizations to route both voice and fax communications over digital data networks by bridging the Public Switched Telephone Network and analog telephones with digital data networks.

What network types are recommended for using the VoIP Gateway Card?

Digital Leased Line and IP-VPN are recommended, while the Internet is not recommended because quality of service is not guaranteed.

Which QSIG service is available between the KX-TDA5480/KX-TDA0484 and KX-TDA0480?

Only CLIP service is available between these specific VoIP Gateway Cards.
