This document provides instructions for using Himax brushless motors, including the use of brushless sensorless speed controls, the proper way to connect the motor and ESC, the importance of cooling, and the prohibition of disassembling the motor.

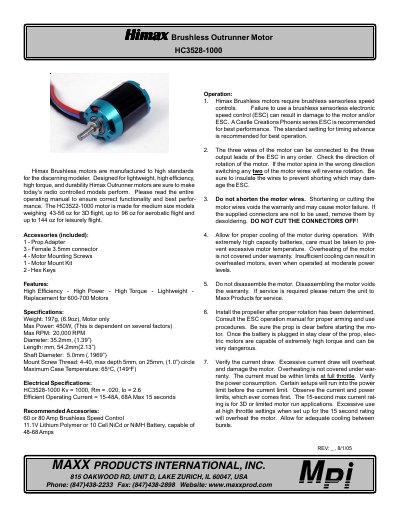

This manual provides operating instructions and safety warnings for the Maxx Products HC3528-1000 brushless outrunner motor. It details the required use of a brushless sensorless electronic speed control (ESC) and describes how to connect the motor wires, noting that the order does not matter but rotation direction must be verified. The document includes a list of included accessories and emphasizes the importance of proper cooling and avoiding wire shortening to prevent damage.
| Weight | 197g |
|---|---|
| Max Power | 450W |
| Max RPM | 20,000 RPM |
| Diameter | 35.2mm |
| Length | 54.2mm |
| Shaft Diameter | 5.0mm |
| Mount Screw Thread | 4-40 |
| Maximum Case Temperature | 65°C |
| Kv | 1000 |
| Efficient Operating Current | 15-48A |
| Max Current | 68A |
The motor requires a brushless sensorless electronic speed control (ESC).
Yes, the three wires can be connected in any order, but the rotation direction must be checked.
Himax motors have a two year limited warranty to the original owner.
