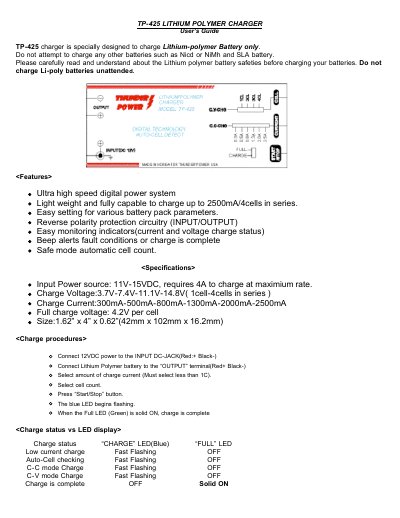

The TP-425 charger is specifically designed to charge Lithium-polymer batteries. Do not attempt to charge any other types of batteries. The charger features a high-speed digital power system and is capable of charging up to 2500mA/4 cells in series. It has easy monitoring indicators for current and voltage charge status, as well as beep alerts for fault conditions or when the charge is complete. The charger also has reverse polarity protection circuitry and a safe mode automatic cell count. The charge procedures involve connecting the power source and the battery, selecting the charge current and cell count, and pressing the start/stop button. The charger's LED display indicates the charge status.
The Thunder Power TP-425 is a digital power system designed specifically for charging Lithium-polymer batteries. It features an ultra-high speed digital power system capable of charging up to 2500mA for 4 cells in series, along with reverse polarity protection and easy monitoring indicators.
| Input Power source | 11V-15VDC |
|---|---|
| Maximum charge current | 2500mA |
| Charge Voltage | 3.7V-7.4V-11.1V-14.8V |
| Full charge voltage | 4.2V per cell |
| Size | 1.62" x 4" x 0.62" |
The TP-425 charger is specially designed to charge Lithium-polymer Battery only.
When the Full LED (Green) is solid ON, the charge is complete.
