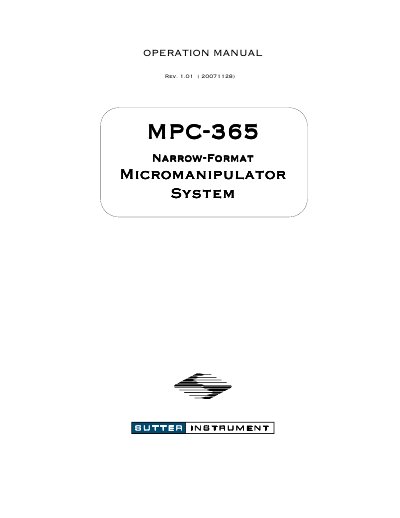

Sutter MPC-365 Narrow-Format Micromanipulator System Operation Manual

About this manual

This document is the operation manual for the Sutter MPC-365 Narrow-Format Micromanipulator System. The system consists of the MPC-200 controller, the ROE-200 rotary optical encoder input device, and the MP-265/M narrow format stepper motor manipulator mechanical unit. The manual covers electrical connections, initial operating instructions for the controller and input device, and controls located on both units.

What's inside

• Introduction
• Components of the MPC-365
• MPC-200 Controller Operations
• ROE-200 Input Device Operations
• MP-265/M Mechanical Mounting Instructions
• Minimizing Electrical Noise
• Fuse Replacement
• Technical Specifications

Specifications

Frequently asked questions

What is the purpose of the CALIBRATE routine on the ROE-200?

CALIBRATE establishes or reestablishes the zero location (0,0,0) safely during an experiment without risking damage to a pipette.

What must be done to the MP-265/M manipulator before it can be operated?

You must remove two shipping screws indicated by red warning tags from the MP-265/M.
