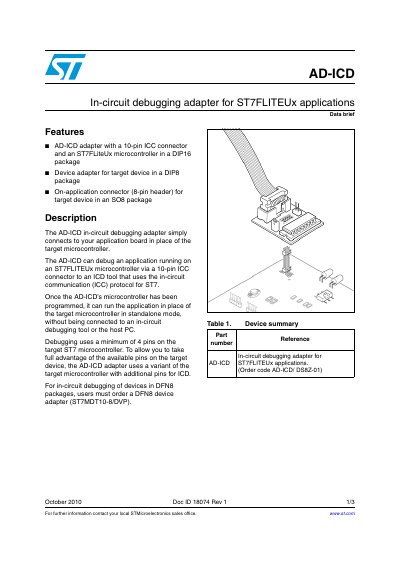

AD-ICD is an in-circuit debugging adapter for ST7FLITEUx applications. It features a 10-pin ICC connector and an ST7FLiteUx microcontroller in a DIP16 package. Additionally, the adapter provides a device adapter for target devices in a DIP8 package and an on-application connector (8-pin header) for target devices in an SO8 package.
The AD-ICD is an in-circuit debugging adapter designed for ST7FLITEUx applications. It connects to an application board in place of the target microcontroller via a 10-pin ICC connector to an ICD tool using the in-circuit communication (ICC) protocol for ST7. The adapter includes a device adapter for target devices in a DIP8 package and an on-application connector for target devices in an SO8 package.
It is an in-circuit debugging adapter for ST7FLITEUx applications that connects to an application board in place of the target microcontroller.
Debugging uses a minimum of 4 pins on the target ST7 microcontroller.
Yes, once programmed, it can run the application in standalone mode without being connected to an in-circuit debugging tool or the host PC.
