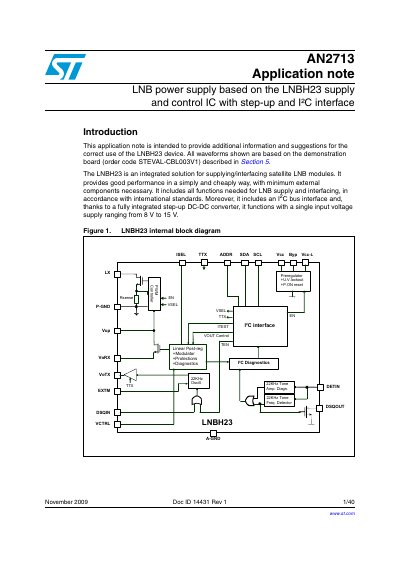

STMicroelectronics LNBH23 Application Note AN2713

About this manual

The document describes the LNBH23, an integrated solution designed to supply and interface with satellite Low-Noise Block (LNB) modules. It features a built-in step-up DC-DC converter that operates from a single 8 V to 15 V input supply, eliminating the need for external power MOSFETs.

What's inside

• Block diagram description
• Pin description
• Component selection guidelines
• Other application circuits
• Layout guidelines
• Software installation

Frequently asked questions

What is the minimum input voltage required for the LNBH23?

The device functions with a single input voltage supply ranging from 8 V to 15 V.

What is the typical output current limit when the ITEST pin is set to 0?

The output current is lower than 6 mA when ITEST=0.

At what junction temperature does the overtemperature flag activate?

The OTF bit is set to "1" if the junction temperature exceeds 150 °C.
