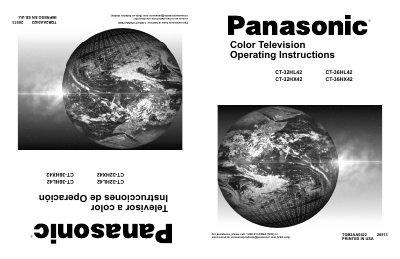

Panasonic CT-32HL42 CT-32HX42 CT-36HL42 CT-36HX42 Manual

This manual introduces the operating methods and precautions of the color television CT-32HL42 CT-32HX42 CT-36HL42 CT-36HX42.

Brand: Panasonic
Category: Television
Document type: User Manual
Language: English
Pages: 112
File format: PDF
File size: 2.3 MB
Published: 06 August, 2012
Updated: 01 October, 2023
MD5 checksum: AE17FC4E22E8B2A757A2330C422F1C61
PDF: Panasonic CT-32HL42 CT-32HX42 CT-36HL42 CT-36HX42 Manual PDF

About this manual

This manual provides operating instructions for the Panasonic CT-32HL42, CT-36HL42, CT-32HX42, and CT-36HX42 color televisions. It includes safety warnings, care and cleaning guidelines, and detailed specifications for the various models. The document outlines the proper installation procedures, including location requirements and cable connections.

What's inside

Congratulations
Care and Cleaning
Specifications
Installation
Television Location
Optional Cable Connections
AC Power Supply Cord
Cable / Antenna Connection
Feature Chart
Auto Set Up Menu

Specifications

Power Source	120V AC, 60Hz
Current Draw	3.6A
Channel Capability	181 VHF-12; UHF-56; Cable-113
Video Input Jacks	1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks	500mV RMS 47K Ohm
Video Output Jack	1Vp-p, 75 Ohm, Phono Jack Type
Audio Output Jacks	0-2.0V RMS 4.7K Ohm
Component Input	75 Ohm, Phono Jack Type
S-Video Input Jacks	S-Video (Y-C) Connector

Frequently asked questions

What languages are available for the menu?

The menu language can be changed to English, Spanish, or French.

What type of cables should be used for connections?

Shielded audio and video cables, specifically 75-ohm coaxial shielded cables, should be used.

Where are the model and serial numbers located?

The model and serial numbers are located on the back of the TV.
