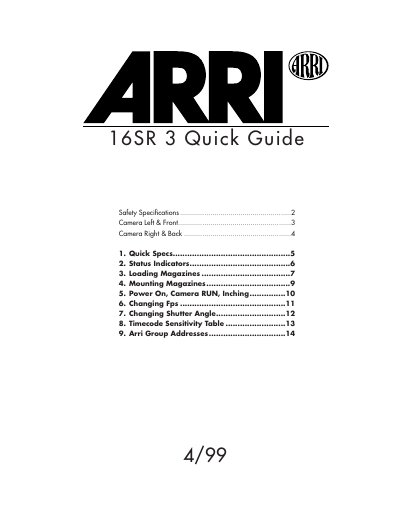

This document is a quick guide for the Arriflex 16SR 3 camera. It includes safety specifications, technical specifications, and operating instructions for the camera.
This document serves as a quick guide for the ARRI Arriflex 16SR-3 camera. It provides essential safety instructions, such as using only original accessories and avoiding solvents in the film path. The guide details the layout of the camera's left, front, right, and back sides, identifying key controls like the magazine release latch, run button, and various sockets.
| Fps Range (High Speed) | 5.000 - 150.00 fps |
|---|---|
| Mirror Shutter Range | 45° to 180°, manually adjustable |
| Power Input (BAT) | 24 V dc, Fischer connector |
| Temperature Range | -20°Celsius to +50°Celsius |
A glowing LED indicates asynchronous operation, meaning the camera is not running at the set fps rate.
A flashing 'bat' indicator means the battery is low (less than 20 volts) and should be exchanged.
No, the guide states not to use HS magazines on the standard camera nor standard magazines on the HS camera.
