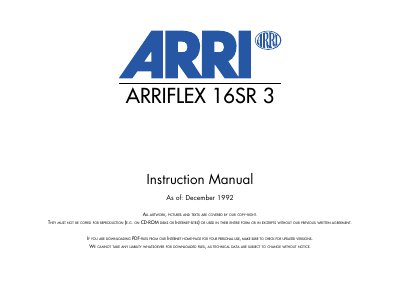

ARRIFLEX 16SR 3 Instruction Manual, describing the features and characteristics of the product, including eyecup iris lever, magazine safety latch, on-board battery, etc.
The ARRIFLEX 16SR 3 is a 16mm/Super 16 system camera designed to handle modern production demands. It utilizes the full range of ARRIFLEX 535 mechanical, optical, and electronic accessories and features a 54mm PL lens mount. The camera includes a time code generator integrated into the electronics and a video-assist system with a 1/2" color CCD. It also features an illuminated frame viewfinder with ARRIGLOW and a mechanically adjustable mirror shutter.
| Film Format | 16mm/Super 16 |
|---|---|
| Lens Mount | 54mm PL |
| High Speed Capability | up to 150 fps |
| Viewfinder Type | Illuminated frame viewfinder |
| Video Assist Sensor | 1/2" color camera CCD 2-FR |
Yes, the format change can be carried out with very few adjustments and does not require an additional film gate.
The HS version of the camera is designed for speeds of up to 150 fps.
No, you should not use standard magazines on the HS camera nor HS magazines on the standard camera.
