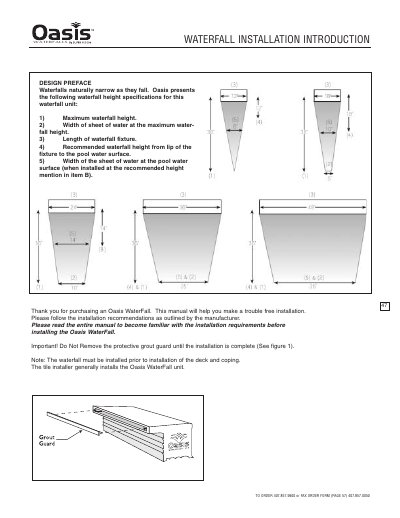

This document is an introduction and design preface for the installation of Oasis WaterFall. It provides specifications for waterfall height, water flow requirement chart, and installation guidelines for PVC waterfall units.
This document serves as an introduction to installing the Oasis WaterFall unit. It outlines design prefaces regarding waterfall height specifications and emphasizes that the unit must be installed prior to the deck and coping. The guide provides critical warnings, such as not removing the protective grout guard until installation is complete.
The manual details hydraulic guidelines for PVC units, including pipe sizing recommendations based on flow rates (e.g., 1.5" pipe for 60 GPM) and specific instructions for installing the unit into a bond beam. It also includes troubleshooting tips for uneven water flow and pump performance charts.
The guide recommends using a minimum of 1.5" pipe.
The waterfall must be installed prior to the installation of the deck and coping.
The unit should not exceed 5 gallons per minute per linear foot.
