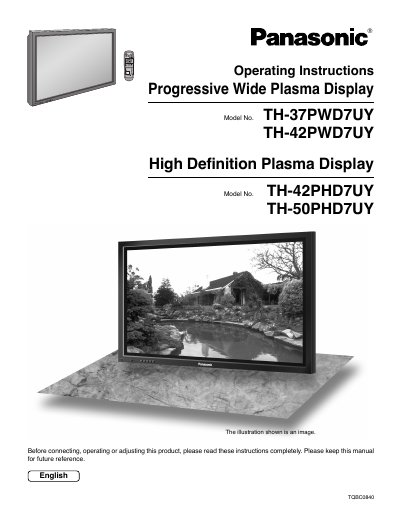

This manual is the operating instructions for the TH-37PWD7UY/TH-42PWD7UY/TH-42PHD7UY/TH-50PHD7UY high-definition plasma displays, which details the functions, usage methods and precautions of the devices.
This manual provides operating instructions for the specified Panasonic Plasma Display models. It covers important safety precautions, initial setup steps including connecting PC input terminals and serial terminals, and basic controls for on-screen menu displays.
The guide details how to adjust picture position and size, configure multi-PIP (Picture-in-Picture) settings, and perform advanced sound adjustments. It also includes instructions for setting up screensavers to prevent after-images, customizing input labels, and troubleshooting common issues such as no picture or no sound.
| Power Supply Voltage | 120 V AC, 50/60 Hz |
|---|
Do not allow a still picture to be displayed for an extended period as this can cause permanent after-image.
The apparatus is equipped with a three pin grounding-type power plug which is a safety feature; do not remove the grounding pin.
