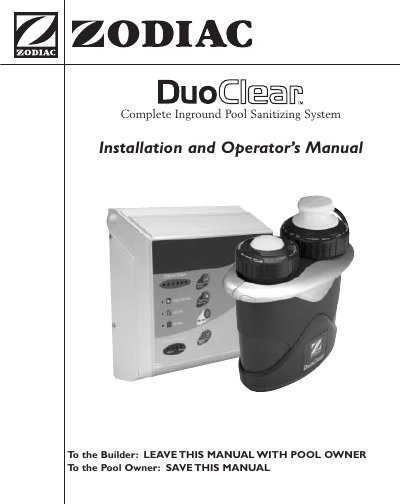

This manual introduces the installation and operation methods of the DuoClear pool sanitizing system.
This manual provides instructions for installing and operating the Zodiac DuoClear Complete Inground Pool Sanitizing System. It details safety precautions regarding electrical hazards, chemical use, and equipment pressure, as well as specific installation requirements for plumbing and power packs.
The document explains how the system works using a combination of chlorine, silver, and copper to sanitize water while maintaining preferred chemistry levels. It includes guidance on operating the control panel, performing routine maintenance, adding salt, and troubleshooting common issues.
| Maximum salt level | 13,000 ppm |
|---|---|
| Minimum flow rate | 12 gallons/minute |
| Maximum water temperature through the cell | 104˚ F |
| Maximum operating pressure | 45 psi |
| Power requirements | 220 – 240 VAC 2 amp draw |
The preferred water chemistry reading indicates an ideal salt concentration of 4,000 ppm.
The system requires maintaining a free chlorine level of 0.5 to 1.0 parts per million (PPM).
The system must be installed by a qualified swimming pool professional or certified electrician.
