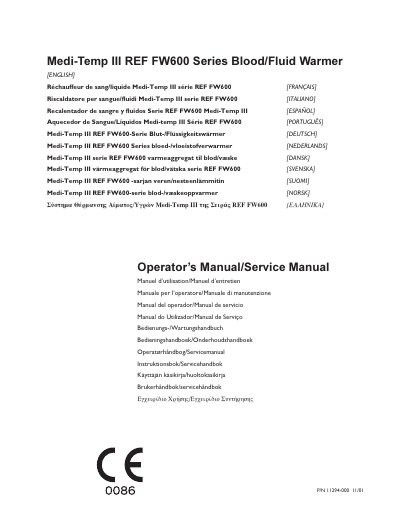

This manual is an instruction manual that introduces the use of the Medi-Temp III REF FW600 blood/liquid heater, safety systems, cleaning methods, and troubleshooting.
The Medi-Temp III FW600 Series Blood/Fluid Warmer is a dry-heat device designed for the safe and rapid warming of blood, blood products, and other fluids. It utilizes disposable warming sets to heat fluids to user-selectable temperatures between 38.0°C and 43.0°C at flow rates up to 300 ml/min, or up to 500 ml/min for room temperature fluids. The unit is designed to be mounted on an IV pole and features a front panel with a temperature display and setpoint controls.
| Temperature Range | 38.0°C-43.0°C |
|---|---|
| Max Flow Rate (Refrigerated) | 300 ml/min |
| Max Flow Rate (Room Temp) | 500 ml/min |
This device is intended to aid in the prevention of inadvertent hypothermia during administration of blood, blood products, and other fluids.
No, the unit is fluid resistant, not fluid proof, and should not be immersed in cleaning or sterilization solutions.
The bubble trap must not go below one-quarter (1/4) full to prevent air from entering the patient.
