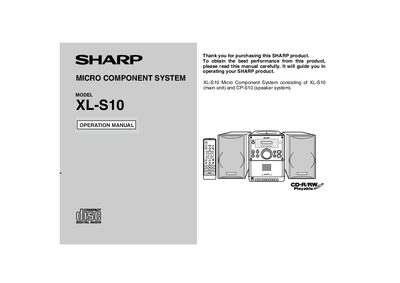

This is an operation manual for a SHARP product, providing information on the features and usage instructions for the XL-S10 Micro Component System.
This manual explains how to install, connect, and operate the Sharp XL‑S10 micro component system, including the main unit and CP‑S10 speaker system. It covers safety precautions, control functions, remote control usage, CD and cassette playback, radio tuning, and advanced features such as timers and sleep mode.
The document also contains wiring diagrams, troubleshooting tips, maintenance procedures, and a full specification table for power, audio, tuner, and speaker characteristics, helping users achieve optimal performance while complying with FCC regulations.
| Power source | AC 120 V, 60 Hz |
|---|---|
| Power consumption | 28 W |
| Dimensions (width) | 6‑5/16" (160 mm) |
| Weight | 5.1 lb (2.3 kg) |
| Amplifier output power | 5 W minimum RMS per channel into 4 Ω (100 Hz‑15 kHz) |
| Speaker impedance | 4 Ω or higher |
| Tuner frequency range | FM 87.5‑108.0 MHz, AM 530‑1,720 kHz |
| CD player frequency response | 20‑20,000 Hz |
Press the ON/STAND‑BY button while holding the MEMORY/SET and CLEAR buttons until “CL” appears on the display.
Use speakers with an impedance of 4 Ω or more; lower‑impedance speakers can damage the unit.
Connect the FM/AM loop antenna to the ANTENNA jack and position the antenna for optimal reception.
