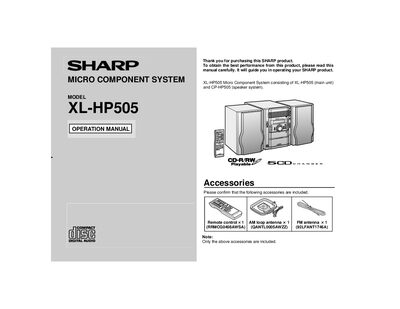

This document is the operation manual for the SHARP XL-HP505 Micro Component System. It provides important instructions and precautions for using the product, as well as a list of included accessories.
This manual covers the Sharp XL-HP505 micro component system, describing its accessories, safety warnings, and proper use. It guides owners through installation, operation of controls, and maintenance procedures.
Key sections include safety precautions, detailed descriptions of front and rear panels, remote control functions, cassette deck and tuner troubleshooting, and a full specifications table for power, dimensions, and audio performance.
| Power source | AC 120 V, 60 Hz |
|---|---|
| Power consumption | 80 W |
| Dimensions | 7-1/4" (185 mm) W x 10-1/4" (260 mm) H x 12" (307 mm) D |
| Weight | 13.7 lbs. (6.2 kg) |
| Output power | 75 watts minimum RMS per channel into 6 Ω |
The package includes one remote control, one AM loop antenna, and one FM antenna.
Use a commercially available lens cleaner and follow the product’s instructions.
Leave at least 4 inches (10 cm) of free space on the sides, top, and back of the equipment.
