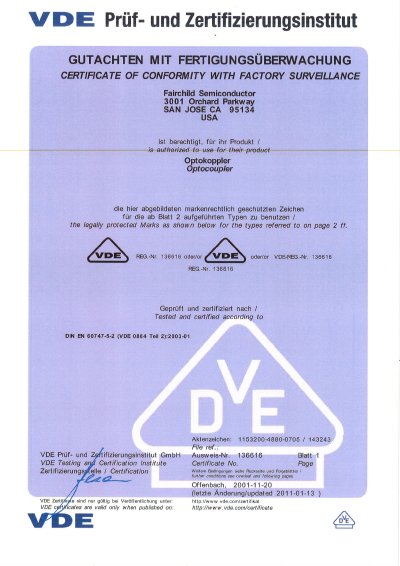

This document is a VDE Certificate of Conformity (Gutachten mit Fertigungstiberwachung) issued by the VDE Pruf- und Zertifizierungsinstitut for Fairchild Semiconductor. It lists a wide range of optocoupler models, including the MOC, HCPLO, and FOD series, that have been tested and approved under certificate number 136616.
The document details specific electrical and environmental safety ratings for these components. Key specifications include a creepage distance of 24mm, an insulation voltage (UIORM) of 565 V, a transient overvoltage rating of 4000 V, and an operating temperature range of -56°C to +100°C. The optocouplers are also classified for SMT mounting according to IEC 60068-2-58 standards.
| Transient overvoltage (peak voltage) | 4000 V |
|---|---|
| Degree of pollution | 2 |
| Storage temperature range | -66°C ..+ 150°C |
| Current ISI Input | 200 mA |
| Power PSI Output | 300 mW |
| Temperature TS | 150 C |
The certificate holder is Fairchild Semiconductor, located in San Jose, CA, USA.
Yes, they are approved for SMT mounting according to IEC 60068-2-58: 215T / 40s and 260°C / 10s.
