Fairchild Semiconductor Optocoupler Type Approval Certificate

About this manual

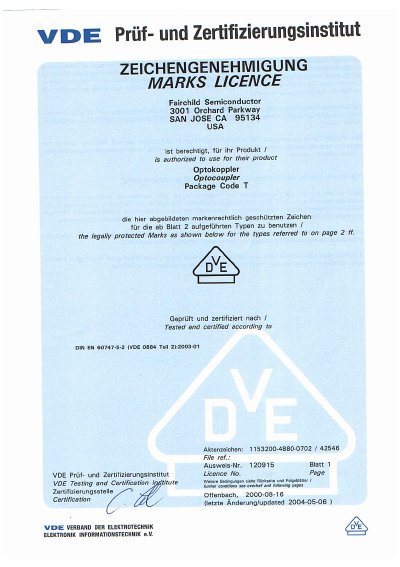

This document is a VDE (Verband der Elektrotechnik) type approval certificate, specifically a "Zeichengenehmigung" or Mark License. It authorizes Fairchild Semiconductor to use specific legally protected marks for their optocoupler products.

The certificate lists numerous Fairchild Semiconductor part numbers, including the HCPL-2730 and 6N138 series, which are approved for use with the VDE trademark on packages designated as Code T. The document details the certification standards met (DIN EN 60747-5-2) and provides technical specifications regarding isolation voltage, creepage distances, and operating temperatures. This manual is written in German.

What's inside

• Optocoupler Types
• Package Code T
• Certification Standards
• Isolation Voltage
• Operating Temperature Range
• Manufacturing Locations

Specifications

Frequently asked questions

What is the package code for these optocouplers?

The certified optocouplers use Package Code T.

What is the maximum power output rating?

The power output rating is 600 mW.

What is the maximum input current?

The maximum input current is 230 mA.
