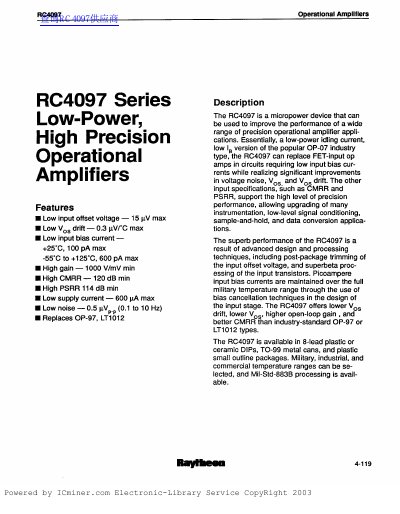

The document describes the RC4097 as a micropower device designed to improve performance in precision operational amplifier applications. It is essentially a low-power version of the popular OP-07 industry type and can replace FET-input op amps while offering significant improvements in voltage noise, input offset voltage drift, and input bias current.
| Input Offset Voltage (Typical) | 15 nV |
|---|---|
| Input Bias Current (Max @ +25°C) | 100 pA |
| Open-Loop Gain (Min) | 1000 V/mV |
| Common Mode Rejection Ratio (Min) | 120 dB |
| Power Supply Rejection Ratio (Min) | 114 dB |
| Supply Current (Max) | 600 pA |
The device is available in commercial (0°C to +70°C), industrial (-25°C to +85°C), and military (-55°C to +125°C) temperature ranges.
The RC4097 is designed to replace the OP-97 and LT1012 types.
Yes, provided that the nulling circuitry is removed.
