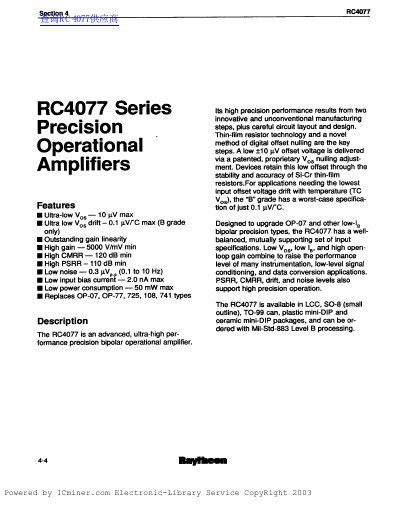

The document provides a comprehensive overview of the RC4077 Series Precision Operational Amplifiers manufactured by Raytheon. It highlights key features such as ultra-low input offset voltage (10 pV max), high gain (5000 V/mV min), and low power consumption (50 mW max). The device is designed to upgrade legacy precision types like the OP-07, OP-77, 725, 108, and 741.
| Input Offset Voltage (Max) | 10 pV |
|---|---|
| Input Noise Voltage Density (0.1 to 10 Hz) | 0.35 nV/√Hz |
| Input Bias Current (Max) | 2.0 nA |
| Power Consumption (Max) | 50 mW |
| Large Signal Voltage Gain (Min) | 5000 V/mV |
| Common Mode Rejection Ratio (Min) | 120 dB |
| Power Supply Rejection Ratio (Min) | 110 dB |
The RC4077 is designed to replace OP-07, OP-77, 725, 108, and 741 types.
The absolute maximum junction temperature is 175°C.
